More surface area. Rigid and self supporting

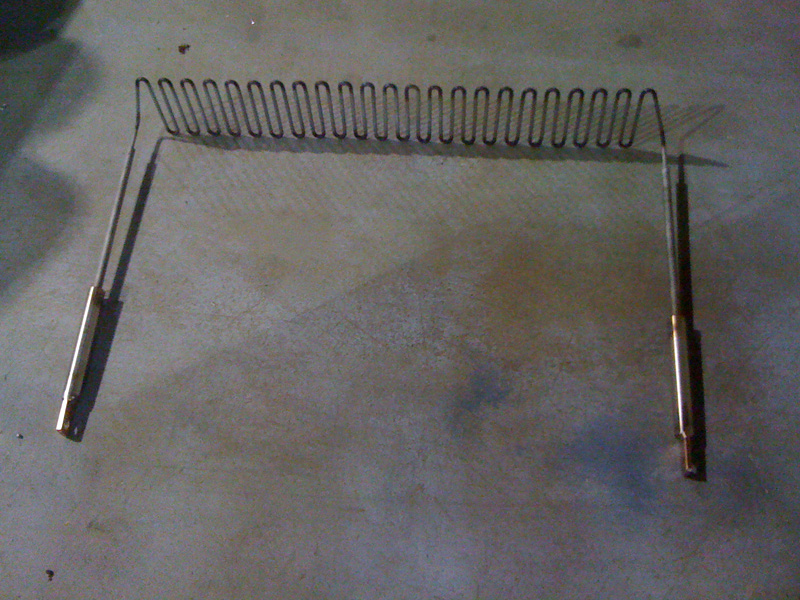

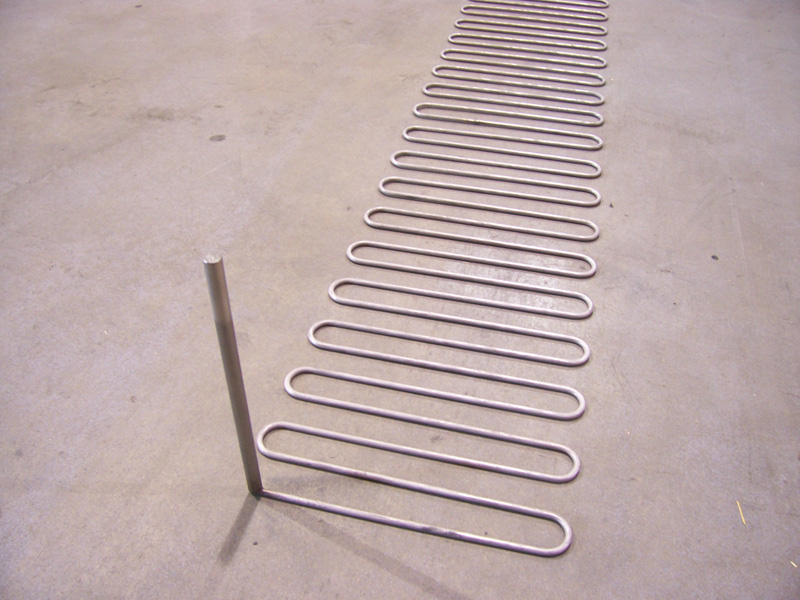

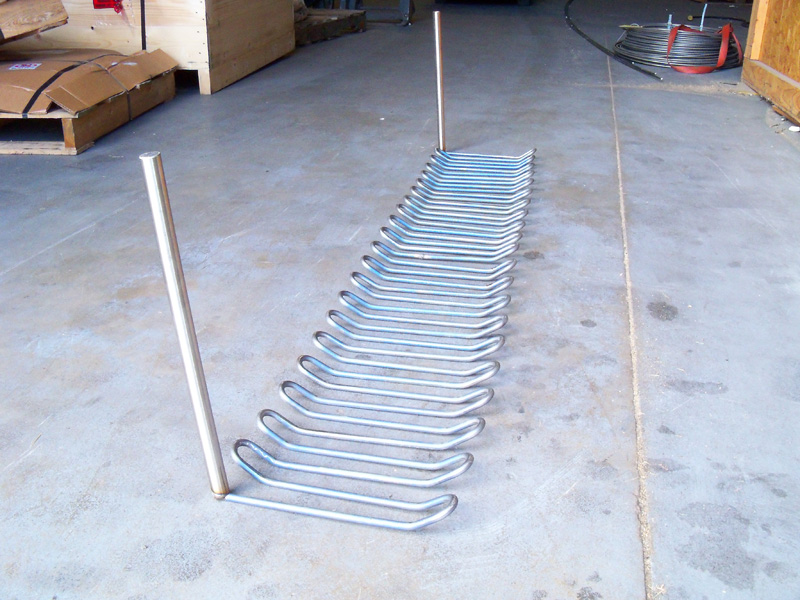

Rod or “Rod Overbend” Elements for applications up to 2100°F (and higher with Moly & Tungsten).

Standard and custom geometries specific to your application. Often, the rod elements are kinked to increase the space between the elements and the furnace wall.

We custom design and manufacture mounting provisions (hangers, hooks), and ceramic insulators for securing these elements to the furnace as needed.

Specifications

Typical Applications

• Carburizing, Annealing, Hardening, Sintering

Temperature Range

Up to 2100°F (higher with specialty materials)

Typical Materials

• Ni-Cr 80/20
• Ni-Cr 70/30
• Fe-Cr-Al
• Moly
• Tungsten
